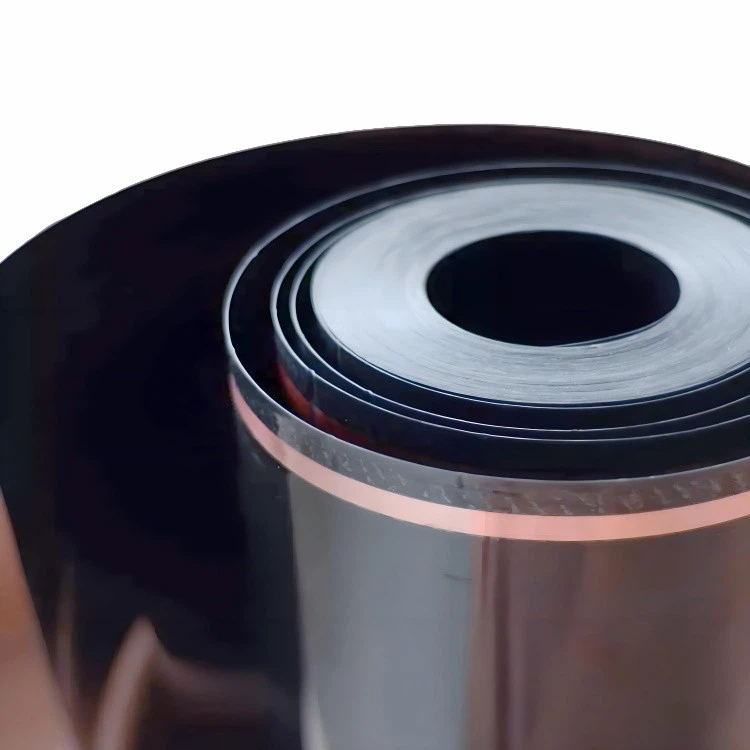

Product features
- High thermal diffusivity: it has a very high thermal conductivity, which can effectively conduct heat from the heat source and is suitable for various applications requiring efficient heat dissipation.
- Bending resistance: The film has good flexibility, can adapt to a variety of complex surface shapes, to ensure stability and reliability in a variety of application scenarios.
- Light and portable: it is light in thickness and weight, easy to carry and install, and does not cause excessive impact on the overall weight and volume of the equipment.
- High electrical conductivity: graphite material itself has good electrical conductivity, so multi-layer composite graphite film also has a wide application prospect in electromagnetic shielding, touch screen and other fields.
Technical Parameters
|
Thickness (mm) |
Width (mm) |
Length (m) |
Density (g/cm³) |
Carbon Content |
Thermal Conductivity (W/m·K) |
|
0.05 |
500 |
100 |
1.5–1.75 |
99.5–99.9 |
300–450 |
|
0.06 |
500 |
100 |
1.5–1.8 |
99.5–99.9 |
400–500 |
|
0.08 |
500 |
100 |
1.5–1.9 |
99.9–99.9 |
400–600 |
|
0.1 |
500 |
100 |
1.5–1.85 |
99.5–99.9 |
400–500 |
|
0.12 |
500–1000 |
100 |
1.5–1.85 |
99.5–99.9 |
400–500 |
|
0.15 |
500–1000 |
100 |
1.5–1.95 |
99.9–99.9 |
400–600 |
|
0.2 |
500–1000 |
100 |
1.5–1.85 |
99.5–99.9 |
400–500 |
Note：Customizable specifications available for thickness, width, length, and performance parameters upon request.
Application area
- Electronic devices: flexible electrodes, transparent conductive films (touch screens, OLED), high-frequency transistors.
- Energy storage: lithium/sodium ion battery cathode, supercapacitor electrode, fuel cell bipolar plate.
- Thermal management: CPU heat dissipation film, 5G equipment thermal pad, spacecraft thermal interface material.
- Electromagnetic shielding: absorption or reflection of electromagnetic waves, used in military industry and communication equipment.
- Environmental protection and medical: seawater desalination membrane, gas separation membrane, biosensor substrate.
Preparation method
The preparation method of multi-layer composite graphite film includes stacking the multi-layer graphite material, and making it closely combined through heat pressing, heat treatment and other processes to form a composite film with excellent properties.
Solutions And Customized Services Provided
01.Fragile graphite film/powder pollution production line
02.Manual double-sided adhesive is required → bubble/offset
03.Graphite film conductive interference sensitive circuit
04.Ultra thin space but still requires reinforcement of stiffness
05.Difficult rework and tearing of surrounding parts
Market prospect
- With the continuous advancement of miniaturization, intelligence, and multifunctionality in electronic devices, the demand for heat dissipation materials has reached unprecedented levels. Multilayer composite graphite films have emerged as a groundbreaking solution in this field, celebrated for their exceptional thermal conductivity and flexible design. As graphene-based innovations continue to advance, these advanced composite materials are poised to unlock even greater market potential in the coming years.
